Autoplot method for multigrain_graph_optimal objects

Source: R/plot_graph_optimal.R
autoplot.multigrain_graph_optimal.Rd

Autoplot method for multigrain_graph_optimal objects

Usage

# S3 method for class 'multigrain_graph_optimal'
autoplot(object, ..., root = NULL, digits = NULL, title = NULL)

# S3 method for class 'multigrain_graph_optimal'
plot(x, ..., root = NULL, digits = NULL, title = NULL)

Arguments

object

A multigrain_graph_optimal object.

...

Additional arguments.

root

A numeric vector indicating which nodes to be regarded as root in the tree layout. Passed down to igraph::layout_as_tree().

digits

Number of decimal places to round to (between 0 and 3). Defaults to NULL which will choose the number of digits based on how crowded the graph plot will be:

  • a single digit if more than 8 hypotheses

  • 2 digits if 5 to 8 hypotheses

  • 3 digits if 4 or fewer hypotheses

title

An optional plot title.

x

A multigrain_graph_optimal object.

Value

A ggraph::ggraph() object.

Details

Both plot() and autoplot() methods require an optional dependency, ggplot2.

Examples

library(ggplot2)

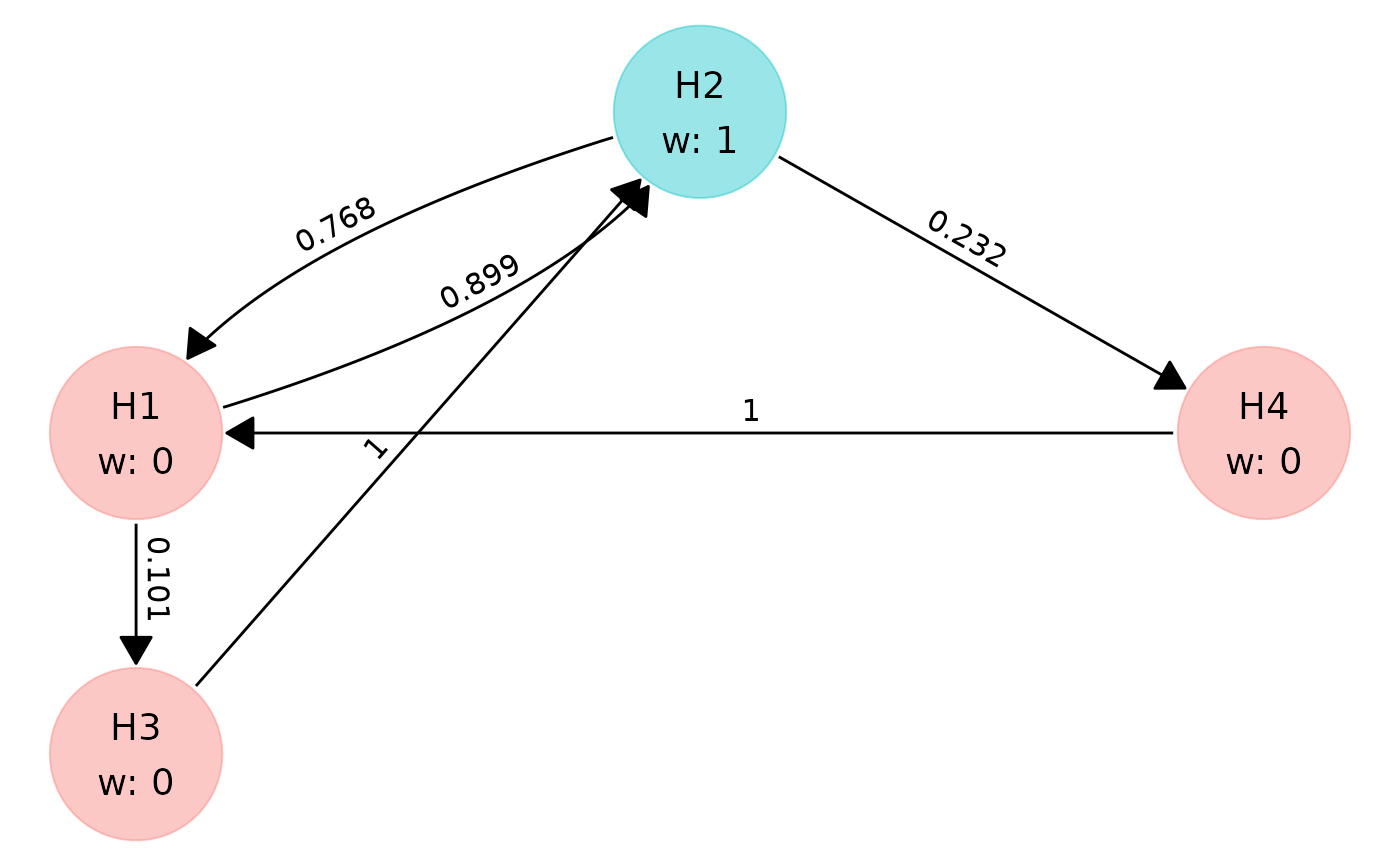

# plotting the example graph optimal
autoplot(graph_optimal_example)

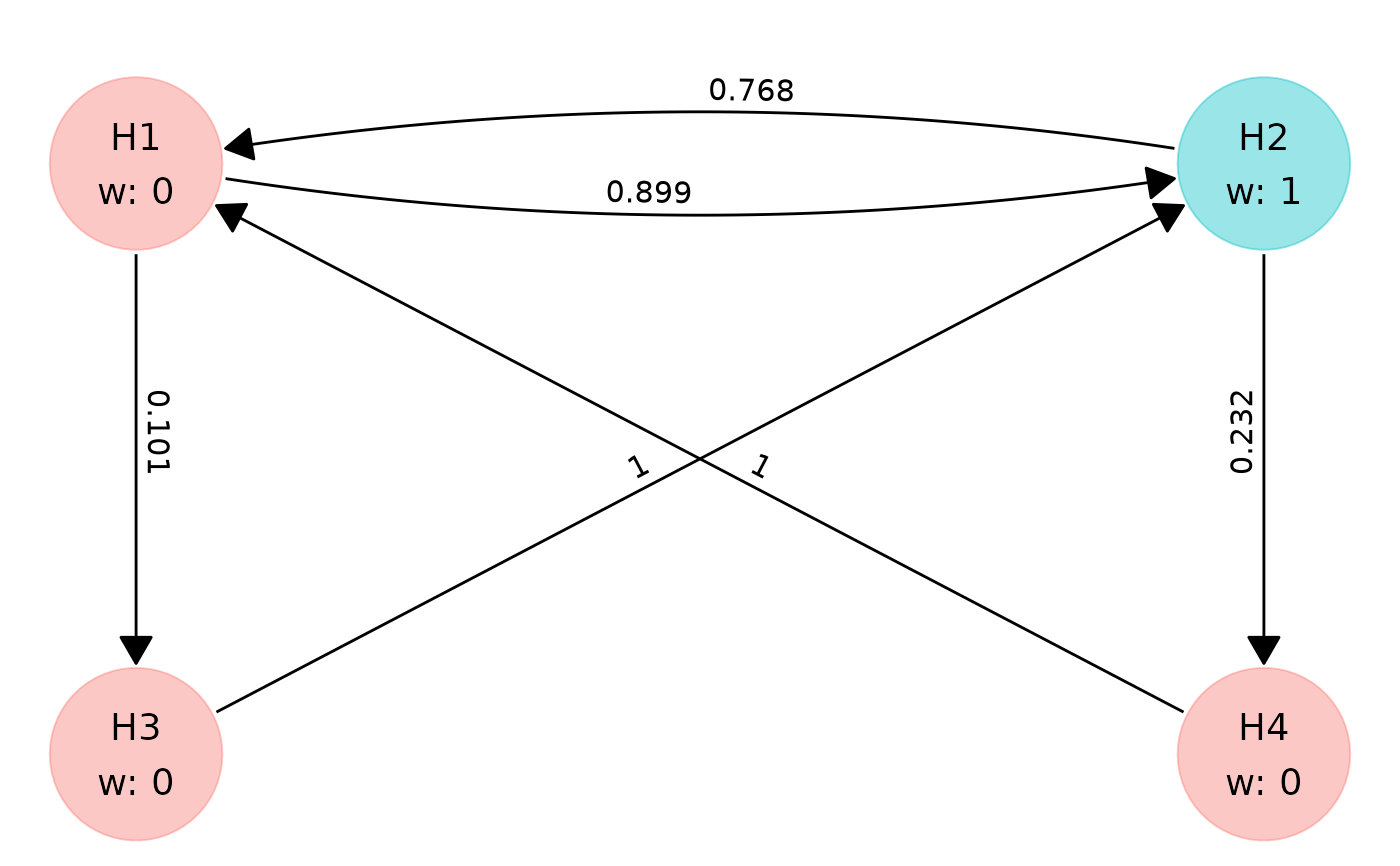

# If you want to control which nodes are treated as root, you can pass them
# as a numeric vector via the `root` argument. For example, we do not like
# the default layout and we would like nodes 1 and 2 to be plotted as root:
autoplot(graph_optimal_example, root = c(1, 2))

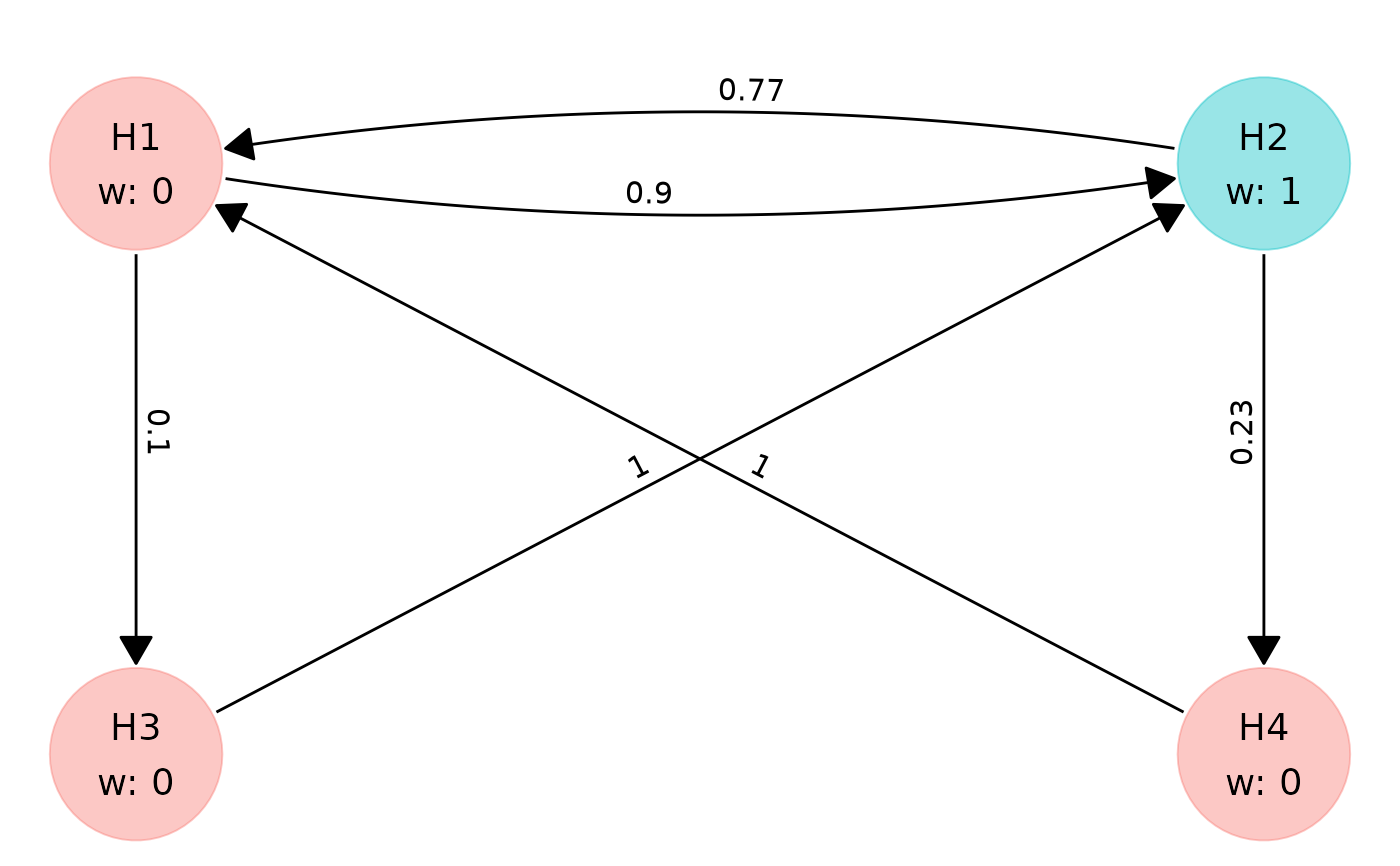

# control the rounding with the `digits` argument.
autoplot(graph_optimal_example, root = c(1, 2), digits = 2)

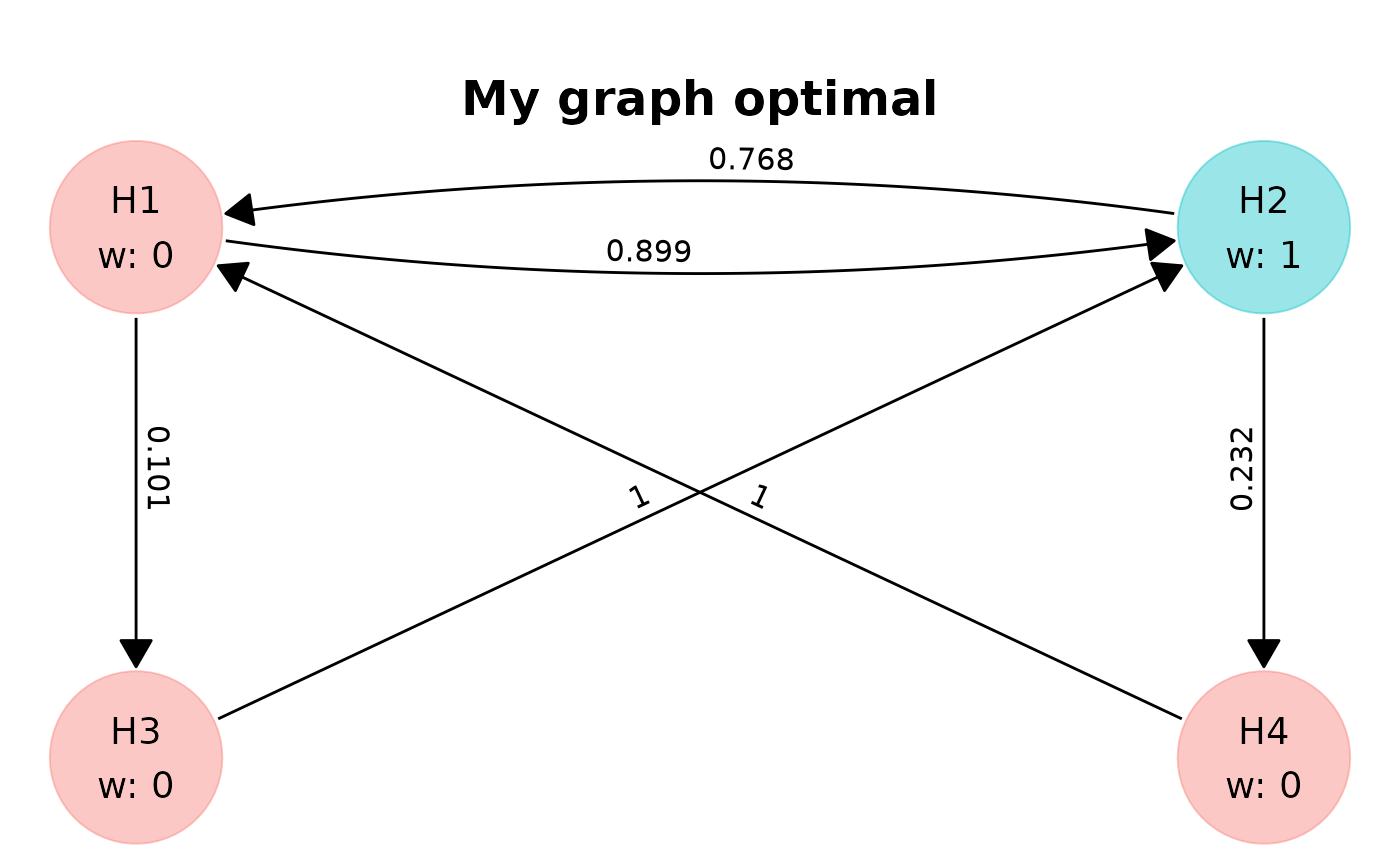

# title
autoplot(graph_optimal_example, root = c(1, 2), title = "My graph optimal")
